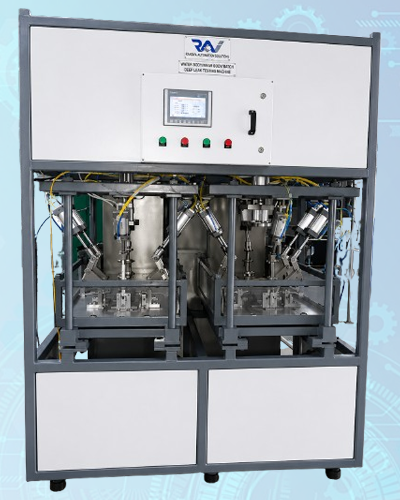

4 Cavity Water Dip Leak Testing Machine Test Pressure-7Bar Common For 9 Different Varieties.

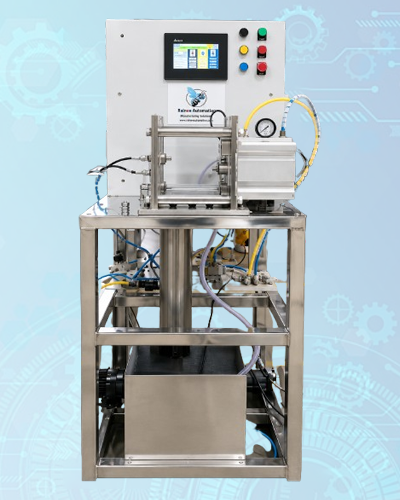

Water Dip Leak Testing Machine For Oil and Gas Valve Test Pressure-50Bar

A Water Dip Leak Testing Machine is a reliable and cost-effective solution used for detecting leaks in components through visual inspection. This method involves submerging the test component in water and observing for air bubbles, which indicate the presence of leaks. It is widely adopted across industries for its simplicity and effectiveness.

Designed for ease of operation, this testing method does not require complex setups, making it ideal for quick inspections and quality checks in manufacturing environments.

Key Features

  • Visual Bubble Leak Detection
  • Pressure Drop Verification
  • Pneumatic / Hydraulic Clamping
  • PLC & HMI Controlled Operation
  • Customized Fixtures for Multiple Variants
  • Automatic Pass / Fail Indication
  • High Accuracy & Repeatability
  • Data Logging & Traceability (Optional)

Applications

  • Leak Testing of SS Castings, Valves & Sealed Components
  • Testing Method:
    • Bubble Detection Method
    • Pressure Drop Method
  • Testing Media: Compressed Air (Component Immersed in Water)
  • Test Pressure: 0.1 to 50 Bar

Industries Served

Automotive
Irrigation
Oil & Gas
General Engineering

Technical Highlights

  • Successfully Achieved Water Dip Leak Testing up to 50 Bar Pressure.
